product name: steel tube 1x8 PLC splitter,with SC/APC connector
Product NO.: V-FOS-P0108SCAS
Weight: 0.05kg
Unit: PCS
Added time: 2017-11-20
Views :
Price(USD$): 5.00

details

Fiber optic  splitter is also called optical splitter, is one of the most important passive devices in optical fiber link, is with multiple inputs and multiple output end of the optical fiber connected devices. The fiber optic splitter by the light splitting principle can be divided into the fused biconical taper (FBT type) and planar waveguide type (PLC type).

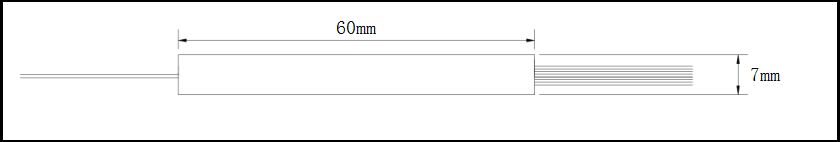

1x8 Steel tube PLC splitter drawing

steel tube 1x8 plc splitter.png


steel tube 1x8 plc aplitter with sc apc connector.jpg



Product parameter:

Product Name

                    Steel tube 1x8 PLC splitter with SC/APC connector

Dimension                         60*7*4mm
Weight                           0.20kg
Insertion Loss                           ≤10.7dB


Specification:


                              Product Type                                        1x8 PLC splitter
                        Opterating Wavelength              nm                                     1260--1650
 Insertion Loss   Typ.     dB                10
   Max     dB                10.7
          Uniformation(Max)     dB                 1
            PDL(Max)     dB                0.3
            TDL(Max)     dB                0.5
           Return Loss     dB               ≥55
           Directivity     dB               ≥50
      Operating&Storage Temperature     ℃              -40--+80

Note:All the date above does not include connectors,UPC connectors,IL add 0.2dB, APC cnnectors,IL add 0.3dB.
