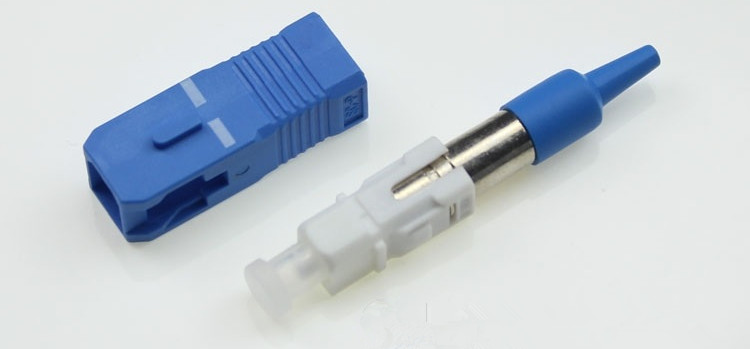

Fiber optic connector:
| Product name | 0.9mm SM SX SC/UPC fiber optic onnector |
| Color | Blue |
| Material | Plastic/Phosphor Bronze |
| Meet the standards | IEC/SGS/ROHS |
Operating temperature | -40~80°C |
Fiber optic ferrule:
Insertion loss | SM | ≤0.20 dB |
Return loss | UPC | ≥55 dB |
Durability | <0.20 dB typical change, 1000 mating | |
| Ferrule hole sizes | 125.0+1/-0um | concentricity:≤1.0um |
| 125.5+1/-0um | concentricity:≤1.0um | |
| 126.0+1/-0um | concentricity:≤1.0um | |
