product name: V-Fiber optic socket 8 cores -A type,FTTH terminal box
Product NO.:
Weight:
Unit: PCS
Added time: 2021-12-30
Views :
Price(USD$): 0.50

Browse similar products

prev : V-Fiber optic socket 2 cores -A type,FTTH terminal box

Next : none

details

Description:

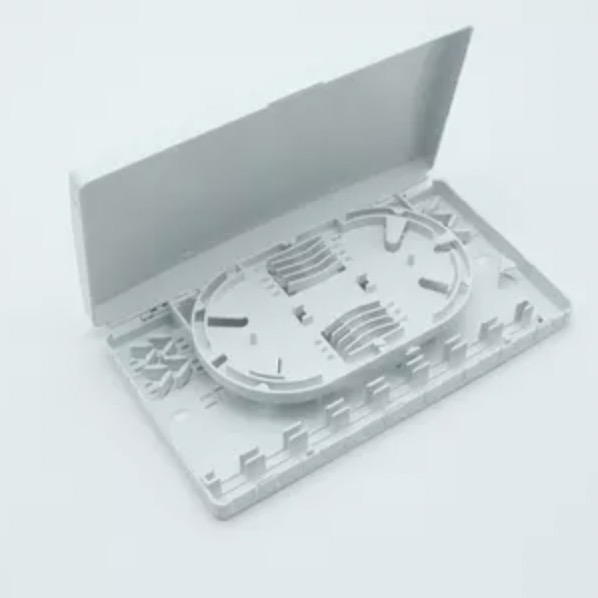

8 core FTTH indoor fiber termination box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTH network building.


Specification:


Product name
FS-8A Fiber Socket
Material
Industrial ABS
Size(L*W*H)
207*115*28 mm
Max Capacity
SC Simplex 8 Cores
Mounting Way
Wall Mounting or inside
FTTH media box
application
Color
White


Features:

Size: 207*115*28 mm, compatible with power faceplate, easy installation.

With dustproof shutter doors.

Made of high quality ABS, anti-collision, flame retardant, resistance to impact.

All the materials complied with ROHS standard.

Convenient press-pull button lock design greatly reduced installation strength.

With reasonable interior space design, allowed redundant fiber storage.

With good fiber bending radius protection, and protection of input and output optical cable

Interface fit for a variety of adapters and connectors, Simplex FC, SC, ST or duplex LC.

Remarkable laser warning identification.

Fit for all kinds of fiber optic cable installation operation, fusion splicing, mechanical splicing and FMC are available, and provides fixed and protection for optical fiber connection.
