FTTH-022 Optical Fiber Panel Specification

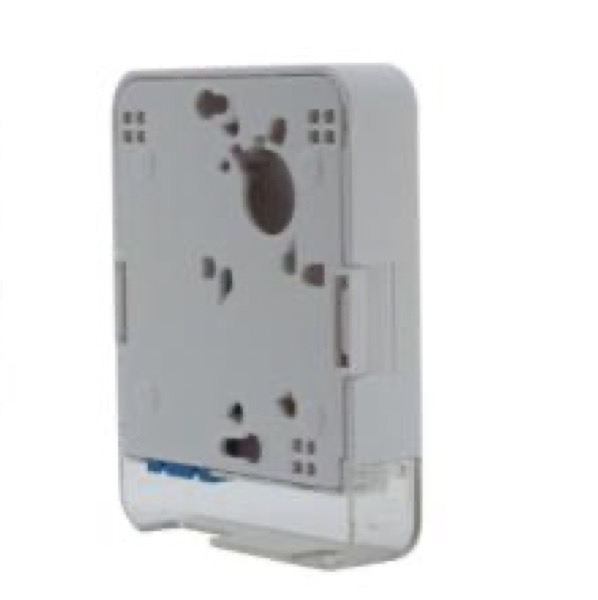

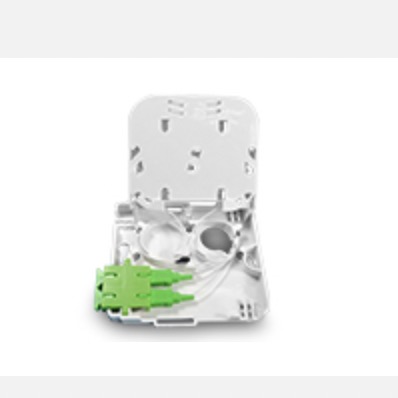

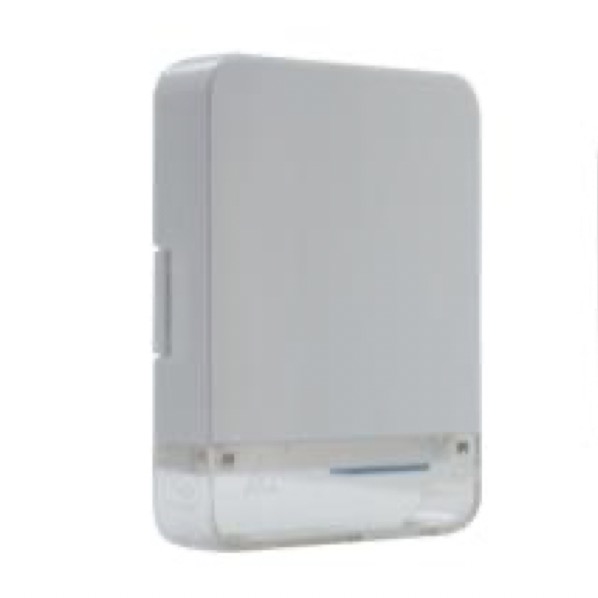

The FTTH-022 is a floor mounted or wall mounted termination box for end user, indoor use, capable to handle fibe fusion，capable to handle fiber fusion, fiber cables and pigtails.
1.Features & Benefits :
| Parameter | Value | Remark |
| Model | FTTH-022 | |
| Outside Dimension(mm) | 116*86*23 | |
| Material | Plastic | |
| Color | White | |
| Storage of fibers | G.657 | |
| Splice capacity | 2fiber | |
| Splice Method | Fusion Splice | 45mm sleeve |
| Adapter type and count | SC,2SC | |
| Input cable | 3mm or figure 8(2*3mm) | From side or bottom |
(1).Support termination, splicing and storage for fiber optic cable systems (2).uitable for one adapter, SC simplex or 2SC configuration(3).Compatible with G.657A1 and G.657B3
(4).Compact structure and perfect fiber management
(5).Engineered fiber routing protect bend radius through the unit to ensure signal integrity (6).Applicable for wall-mounted and compatible with flush-mount outlet.
2.Product Specifications:
3.Accessories:
| NO. | Name | Qty |
| 1 | Fiber splice protection sleeve | 2pcs |
| 2 | Expansion bolts forthe outlet wall-mounted | 2set |
